SWAG 20 TON Press Brake DIY Builder Kit

20 TON Press Brake DIY Builder Kit

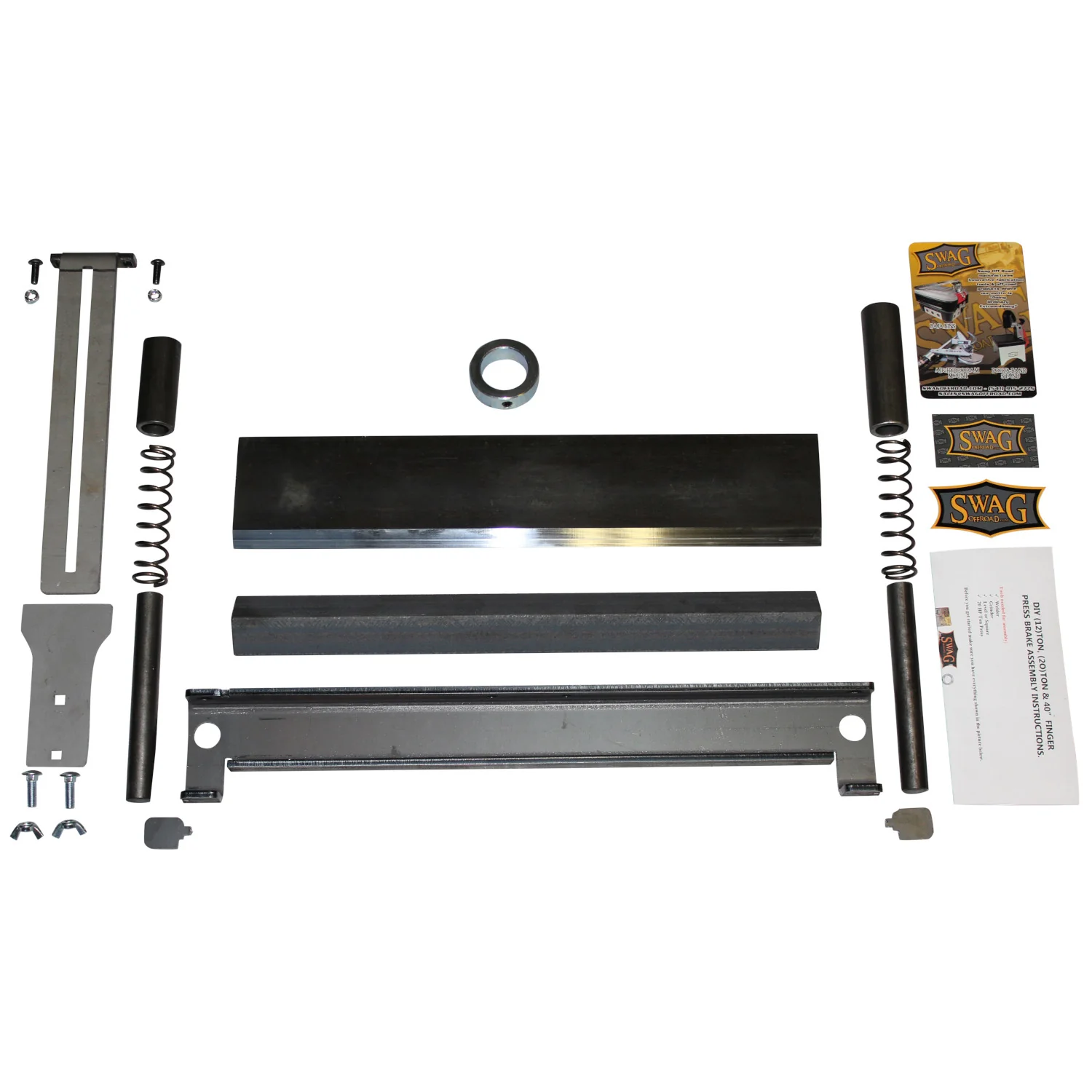

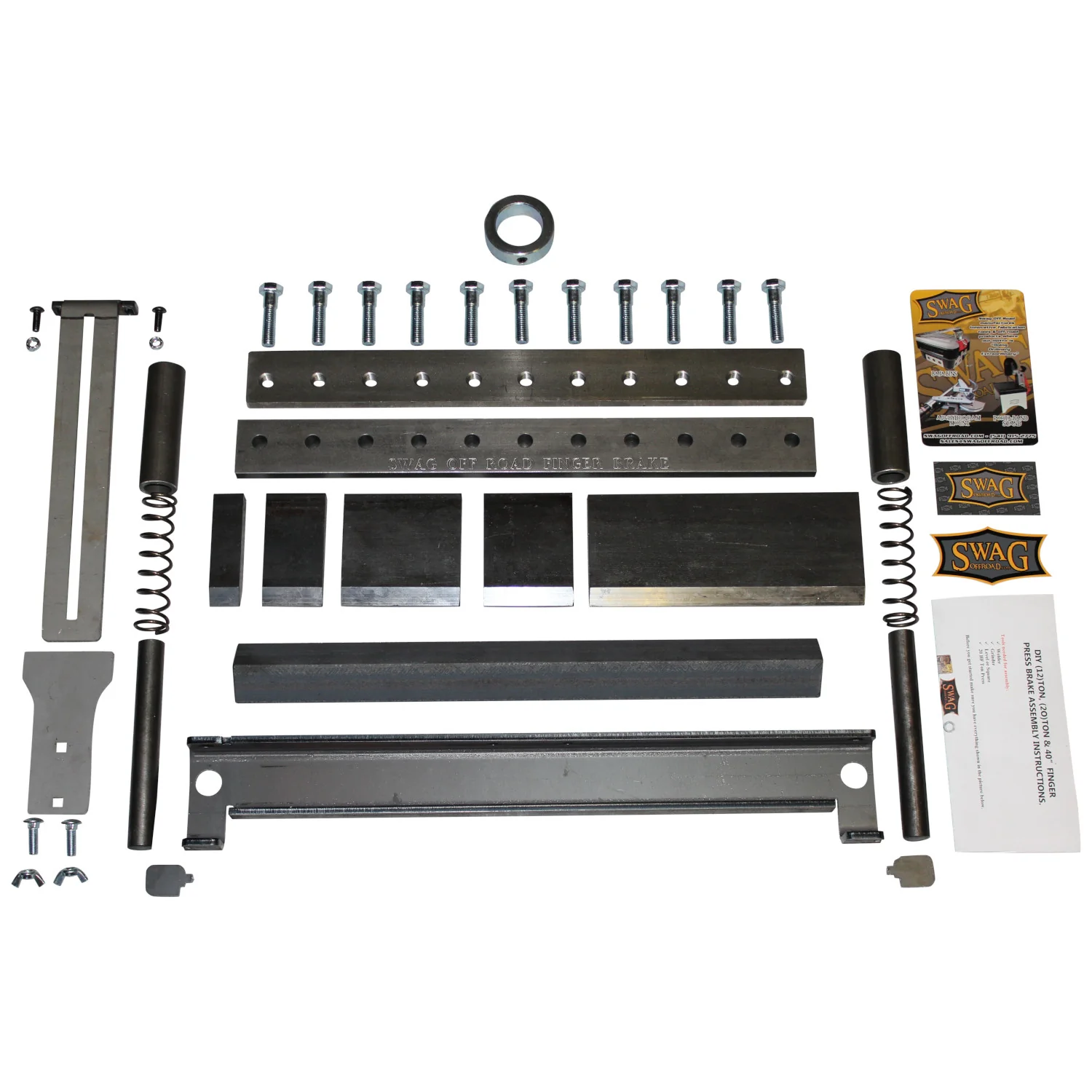

Press Brake kit comes unassembled, you do the final assembly and welding.

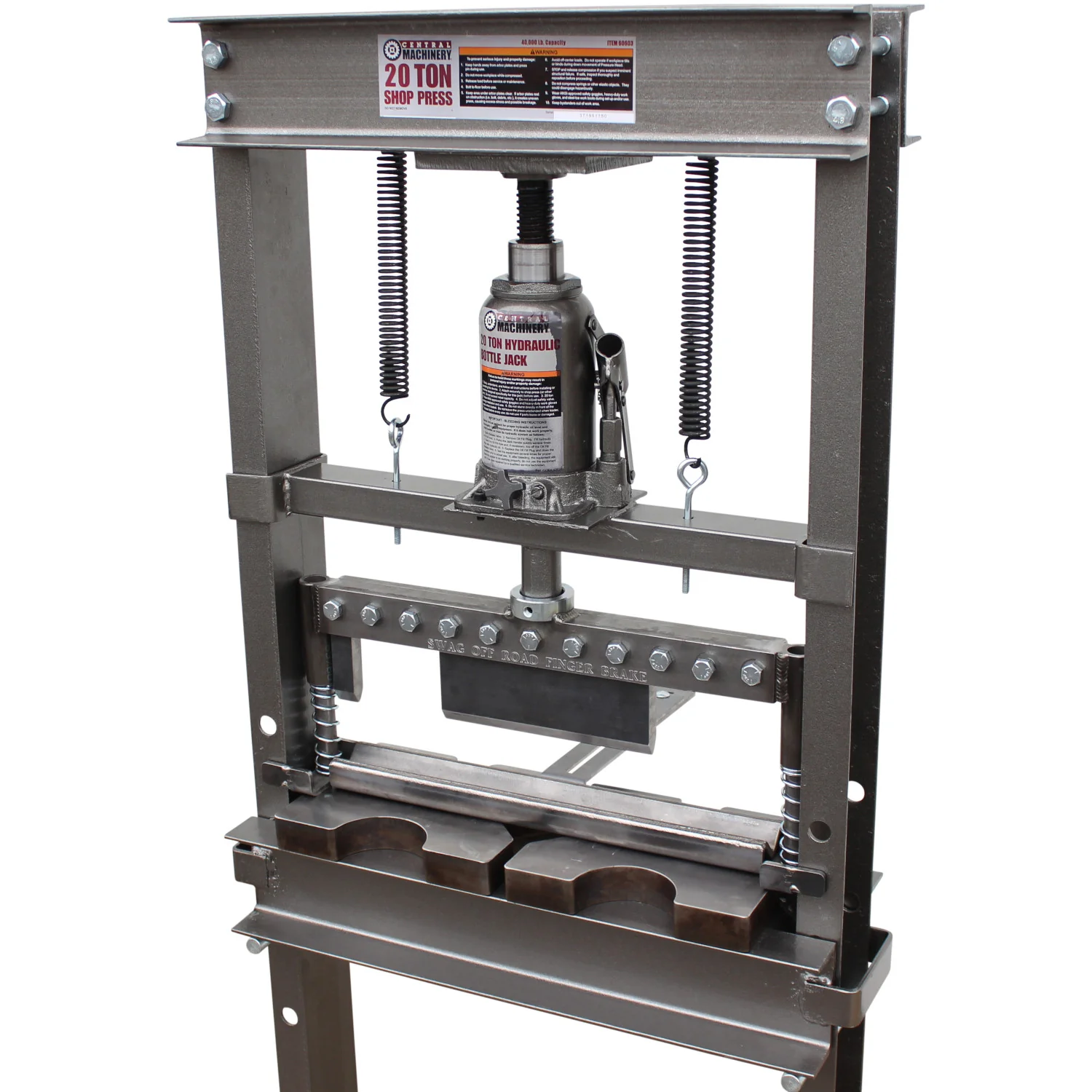

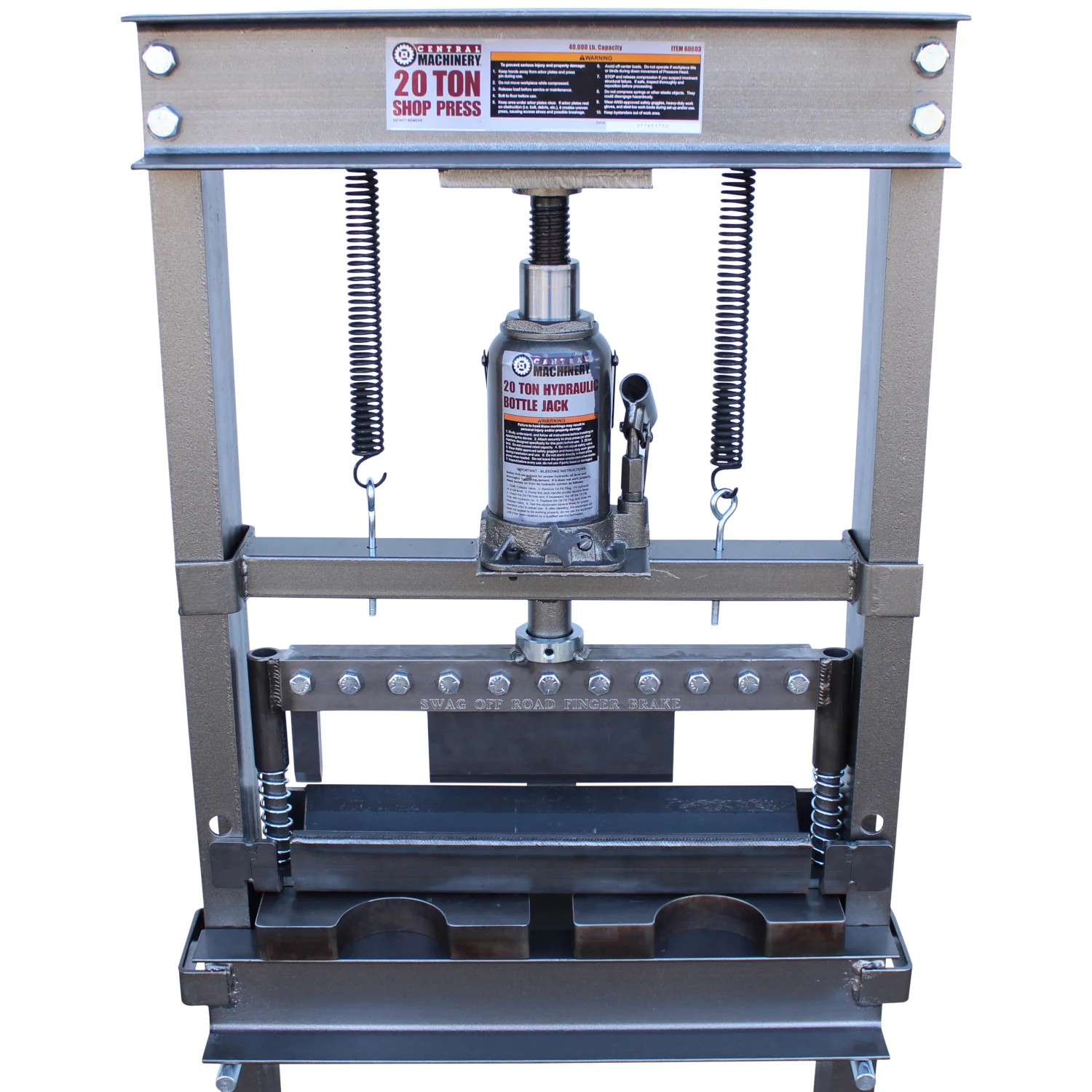

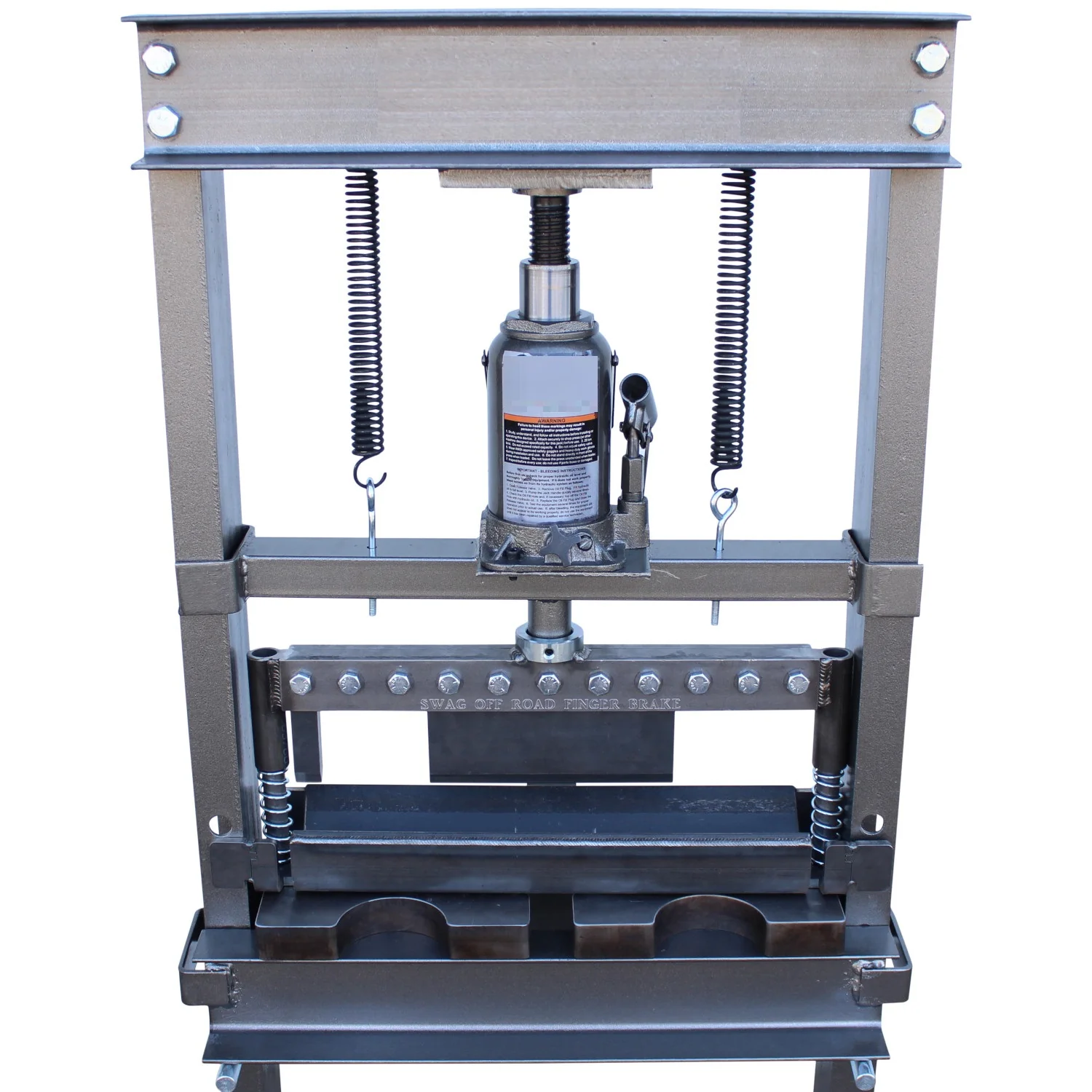

Designed to fit the Harbor Freight 20 ton hydraulic press Item # 32879, 60603 & 70603.
Press brake kit includes an adjustable back stop for accurate and repeatable bends.

  • Max Bending Radius (deg.) 110
  • Max Bending Capacity 3/8" plate
  • Max Bending Width 19.25"
  • Total width of the brake is 22.125" wide

Tools required for assembly: welder, grinder, level, small square.

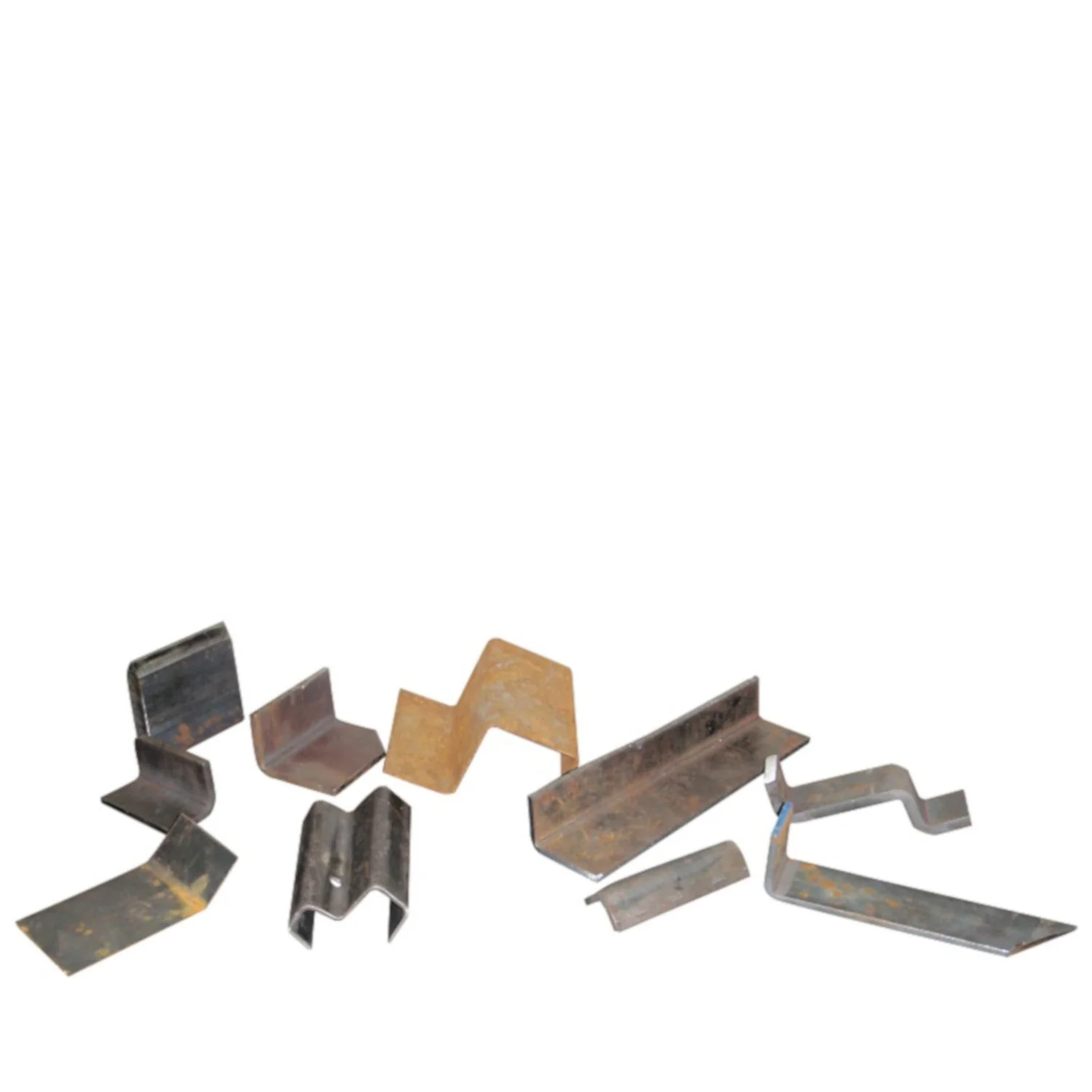

It Is capable of bending mild steel in the following length and thickness.

  • 19" = Full bending width of the bottom die on anything 1/8" or thinner.
  • 15" in 3/16"
  • 12" in 1/4"
  • 5" in 3/8"
Please provide us a valid shipping address that UPS/FEDEX will deliver to.
NOTE: Shop Press and Bottle Jack are NOT Included
NOTE: The optional centering tabs provided with the press break do not come attached on the fully welded kit.

The DIY 20 ton press makes a great addition to the arbor press plates we sell HERE.


Select Desired Configuration
Select Shop Press Internal Width
From $249.95
SWAG 20 TON Press Brake DIY Builder Kit—
$249.95

Product Information

Shipping & Returns

Description

20 TON Press Brake DIY Builder Kit


Press Brake kit comes unassembled, you do the final assembly and welding.
Designed to fit the Harbor Freight 20 ton hydraulic press Item # 32879, 60603 & 70603.
Press brake kit includes an adjustable back stop for accurate and repeatable bends.

  • Max Bending Radius (deg.) 110
  • Max Bending Capacity 3/8" plate
  • Max Bending Width 19.25"
  • Total width of the brake is 22.125" wide

Tools required for assembly: welder, grinder, level, small square.
It Is capable of bending mild steel in the following length and thickness.

  • 19" = Full bending width of the bottom die on anything 1/8" or thinner.
  • 15" in 3/16"
  • 12" in 1/4"
  • 5" in 3/8"
Please provide us a valid shipping address that UPS/FEDEX will deliver to.
NOTE: Shop Press and Bottle Jack are NOT Included
NOTE: The optional centering tabs provided with the press break do not come attached on the fully welded kit.

The DIY 20 ton press makes a great addition to the arbor press plates we sell HERE.


PRESS BRAKE ASSEMBLY INSTRUCTIONS
